Small & adhesive tag with push-button, 3-axis accelerometer and temperature sensor
Applications
- Asset tracking
- Presence detection
- Temperature measurement
- Movement detection
- Free-fall alert
Available Firmware
Unique identifier reading options:

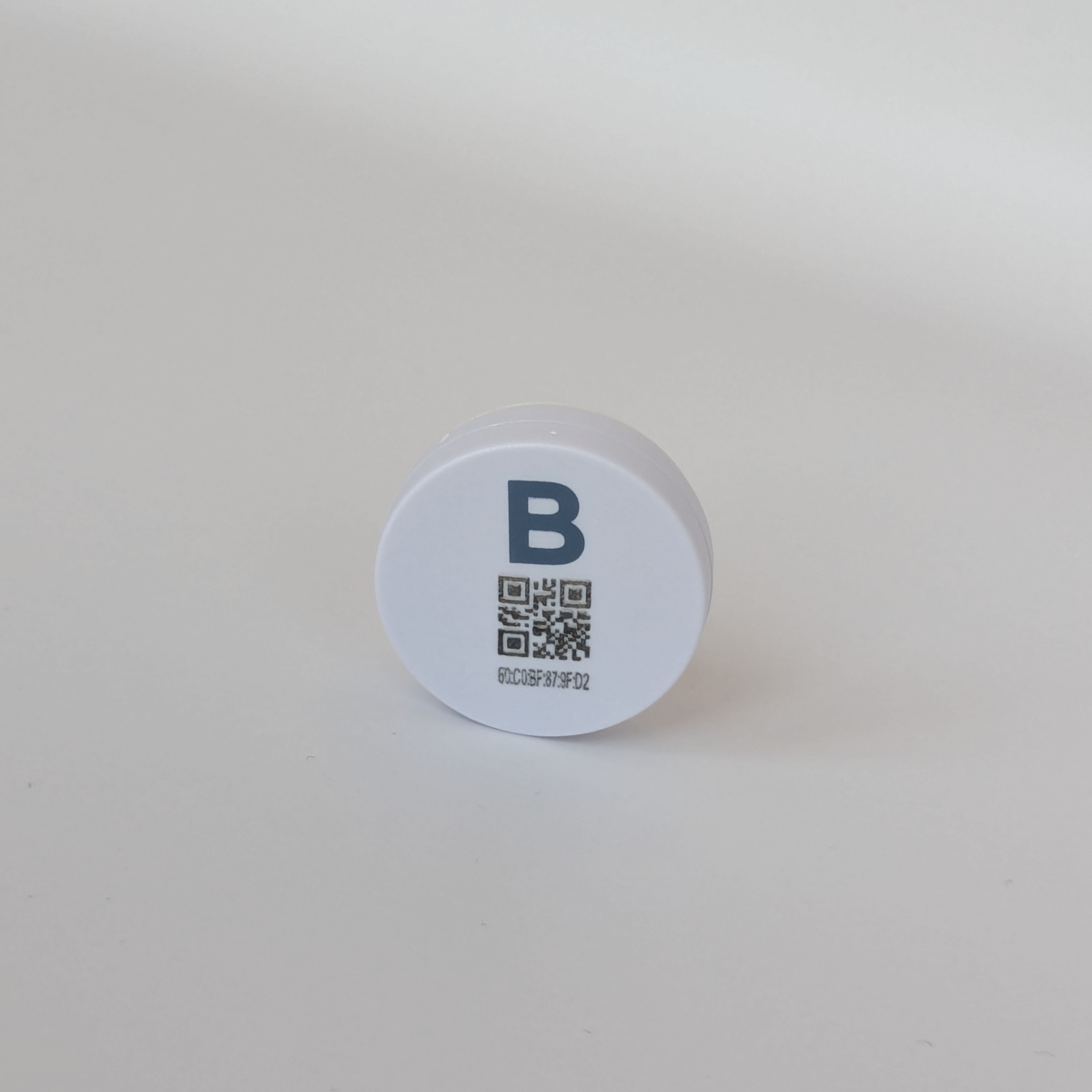

- Printed/laser engraved QR code or digits
Printing Options
- Laser engraving
- Silkscreen Printing
Sensors and Actuators
- Accelerometer User-selectable full scales of ±2g/±4g/±8g/±16g and is capable of measuring accelerations with configurable trigger events:
- Single tap
- Double tap
- Wake-up movement
- Flip-flop
- Free-fall
- Temperature sensor allowing an accuracy
- from 0°C to 70°C: ± 0.8°C (1)
- from -40°C to +85°C: ± 1.3°C (1)
- LEDs red and green
Battery
- Reference CR2032
- Quantity 1 unit
- Capacity 225 mAh
- Voltage 3 Volts
- Replaceable No
Environmental properties
- Protection IP68
- Splashproof Yes (1m, 24h)
- Dustproof Yes
Chemical properties
- Resistance Saltwater, salt mist, acetic acid water, carbonated sodium water, sugared water, ethylene glycol
- Humidity 95% (50°C, 24h)
(1) Typical specifications are not guaranteed
