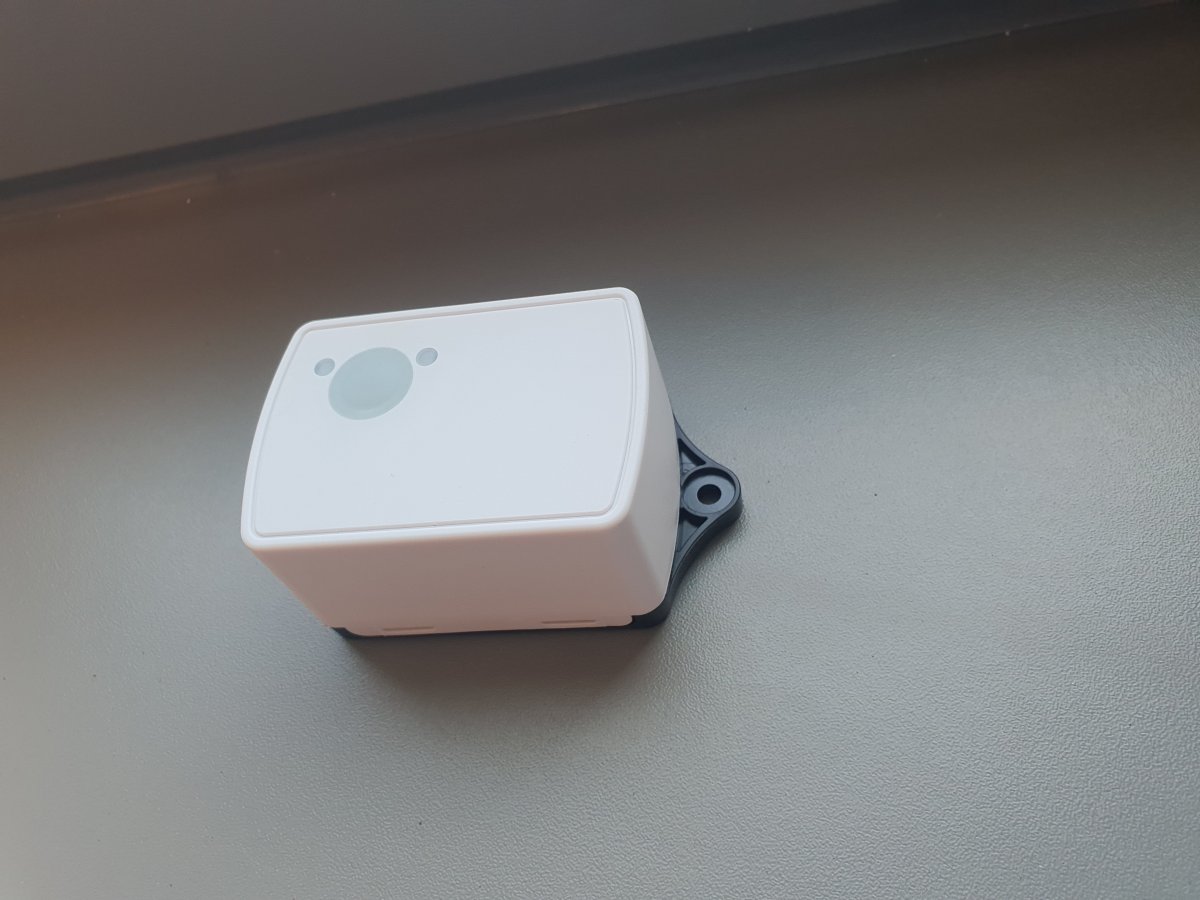

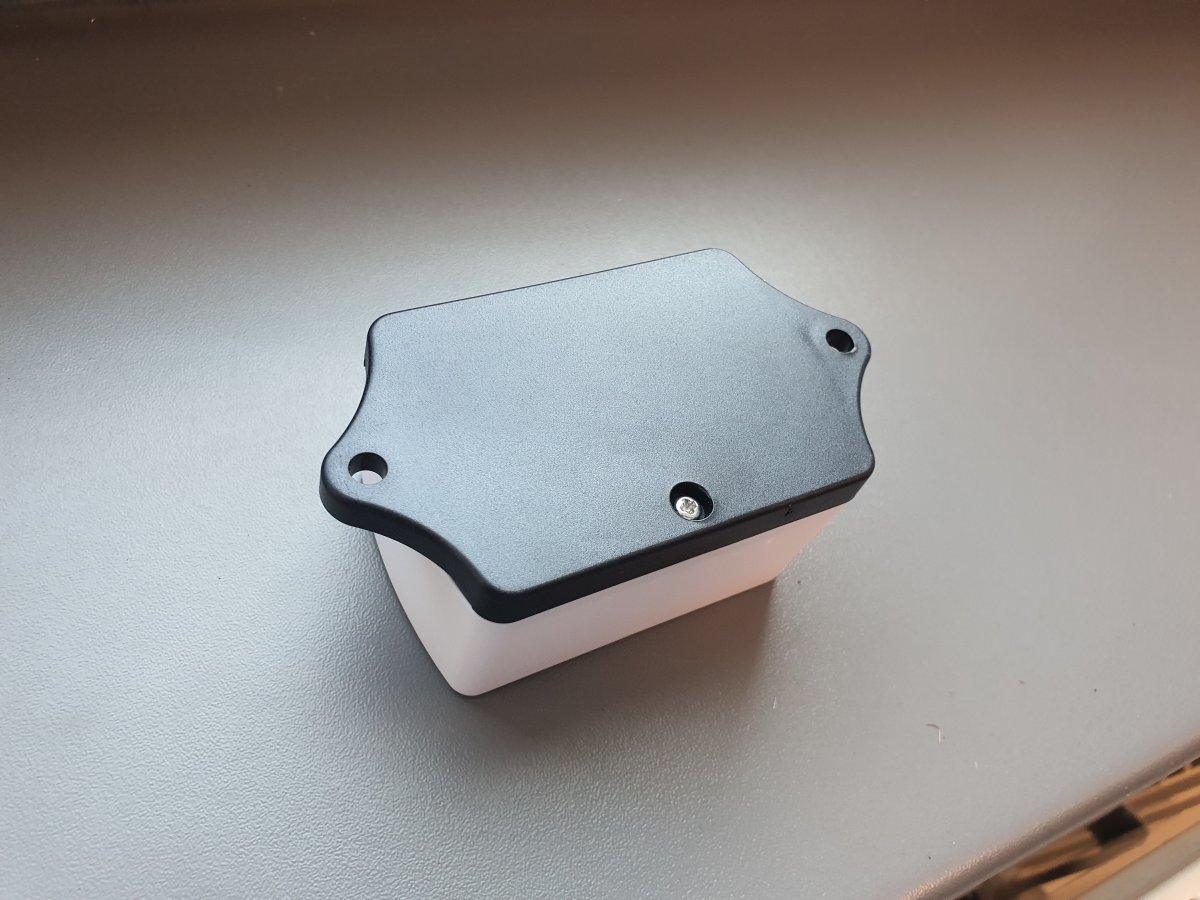

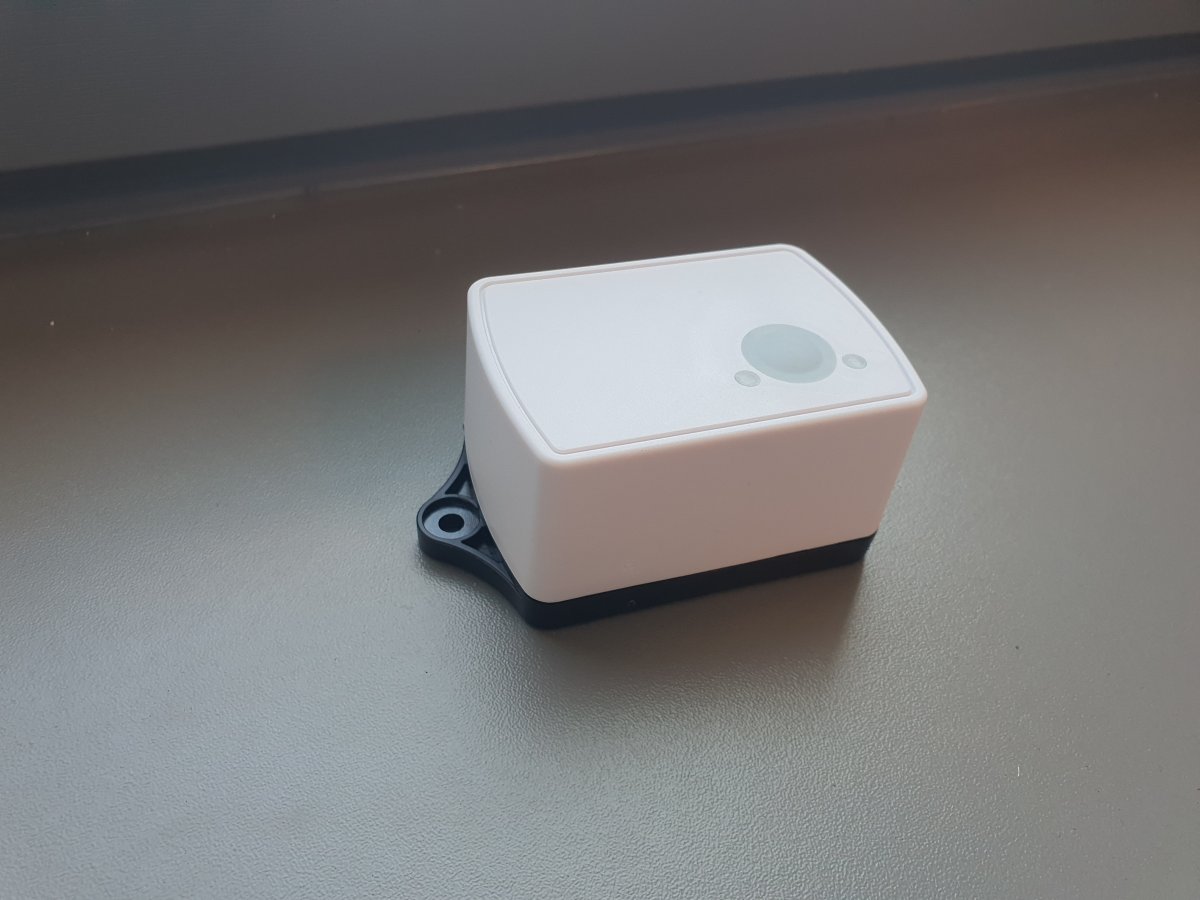

Large screw-drivable anchor with 3-axis accelerometer and temperature sensor
Applications
- Scanner / Repeater
- Asset tracking
- Presence detection
- Temperature measurement
- Movement detection
- Free-fall alert
Available Firmware
- Presence detection (Bluetooth® LE)
- Proximity positioning (EchoTag®)
- Accurate positioning (Quuppa® Emulation Pro)
Data packets
- iBeacon (Apple iBeacon™ standard)
- Eddystone-UID (Unique identifier)
- Eddystone-URL (Physical Web)
- Eddystone-TLM (Telemetry with temperature and battery voltage)
- ALT-Beacon (Open and Interoperable specification)
- Secure Beacon (BLINQY secure frame format with AES-128 symmetric encryption)
- Proprietary (Custom frame)
Options
- Visible LEDs
- NFC (13.56 MHz, read only)
- Laser engraving
- Silkscreen Printing
Sensors and Actuators
- Accelerometer User-selectable full scales of ±2g/±4g/±8g/±16g and is capable of measuring accelerations with
configurable trigger events:
- Single tap
- Double tap
- Wake-up movement
- Flip-flop
- Free-fall
- Temperature sensor allowing an accuracy
- from 0°C to 70°C: ± 0.8°C (1)
- from -40°C to +85°C: ± 1.3°C (1)
- LEDs red and green
Battery
- Reference AA
- Quantity 4 units
- Capacity 5200 mAh @21°C @25mA continuous discharge to 0.8 volts
- Voltage 3.0 Volts
Environmental properties
- Protection IP68
- Splashproof Yes (1m, 24h)
- Dustproof Yes
Chemical properties
- Resistance Saltwater, salt mist, acetic acid water, carbonated sodium water, sugared water, ethylene glycol
- Humidity 95% (50°C, 24h)
(1) Typical specifications are not guaranteed
